Duraride Axle Specification Form – Heavy Duty Trailer

All fields below must be filled to submit a heavy duty axle quote request. Please include one axle specification per form submission and allow for 24-72 hours to receive a quote. Alternatively, you may download a PDF version of this form here. Please send the completed PDF form to sales@wsdwheel.com.

Company Name(Required)

Contact Name(Required)

Email(Required)

Date(Required)

MM slash DD slash YYYY

Track(Required)

71.50″

77.50″

Other

Cam Length(Required)

17.312″ Short

20.406″ Intermediate

24.063″ Long

Hub Material(Required)

Standard – Ductile Iron

Liteweight

Other

Wall Thickness(Required)

0.50″ – 22,000 LBS

0.625″ – 25,000 LBS

0.75″ – 30,000 LBS

Slack Adjuster(Required)

None

Automatic 5.0″ Arm

Automatic 5.5″ Arm

Automatic 6.0″ Arm

Other

Bolt Pattern(Required)

10-285.75mm Hub Pilot

10-11.25″ Stud Pilot

8-275mm Hub Pilot

10-8.75″ MM Stud Pilot

Spindle Type(Required)

Tapered

Parallel

Brake Chambers(Required)

30/30 Spring Brake

Type 30 Service

Other

Stud Length(Required)

Short

Long

Spindle Nut(Required)

4 Piece Nut & Washer Kit

Castle Nut Washer CTR Pin

PRO TORQ

Brake Chamber Port Orientation(Required)

Up – Standard

Down

Wheel Nuts(Required)

(2) Per wheel end

(8 or 10) Full set

Brake Size(Required)

12.25″ x 7.50″

16.50″ x 7.00″

With Dust Shields

Other

Chamber Stroke(Required)

Standard

Long

Seal(Required)

Standard

STEMCO Guardian

Other

Shoe & Lining(Required)

R20

R23

Lubrication(Required)

Oil

Grease

Brake Drum(Required)

Cast

Lightweight

Other

ABS Sensor(Required)

Yes

No

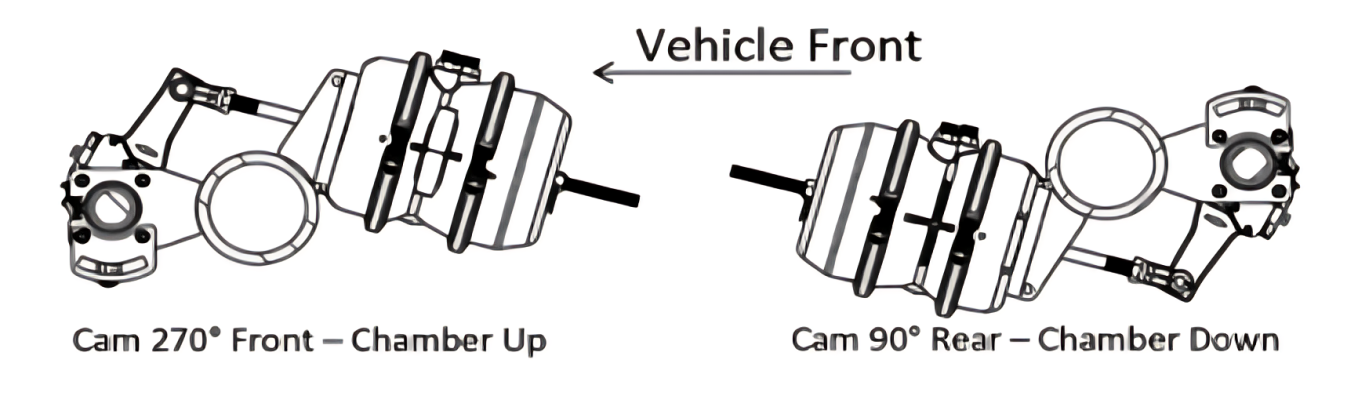

S-CAM Direction (Please see the graphic below for reference)(Required)

Front – Chamber Up

Rear – Chamber Down

Additional Customer Notes (Optional)

CAPTCHA

Submit
